CAPABILITIES
Measures RF signal strength (RSSI) within buildings
Measures Signal-to-Interface-plus-Noise Ratio (SINR)
Measures Frame Bit Error Rate (FBER)
Conforms to fire codes adopted by local jurisdictions
Compatible with Public Safety Land Mobile Radio (LMR) systems
Supports multiple transmitter sites and systems
FEATURES
Tap and drag to define building grids and critical areas
Configure heatmap layouts on floorplans
Define RSSI, SINR, FBER pass/fail criteria, thresholds, and measurement
One-touch operation across frequencies, bands, services
Measure and record RF over time
Measure RSSI, SINR, FBER, and 10+ frequencies with a single tap
Lightweight and low power consumption
Instant test reports, branded and dynamic
Playback signal captured on spectrum graph display
Back office mode for configuration, playback, report sharing
Store and recall multiple projects
Pre-built configuration templates
Reduces project time by 50%+
Operates 6+ hours continuously
Weighs less than 1lb
Produces objective readings
Enables simple heat mapping
Expands to support other signals

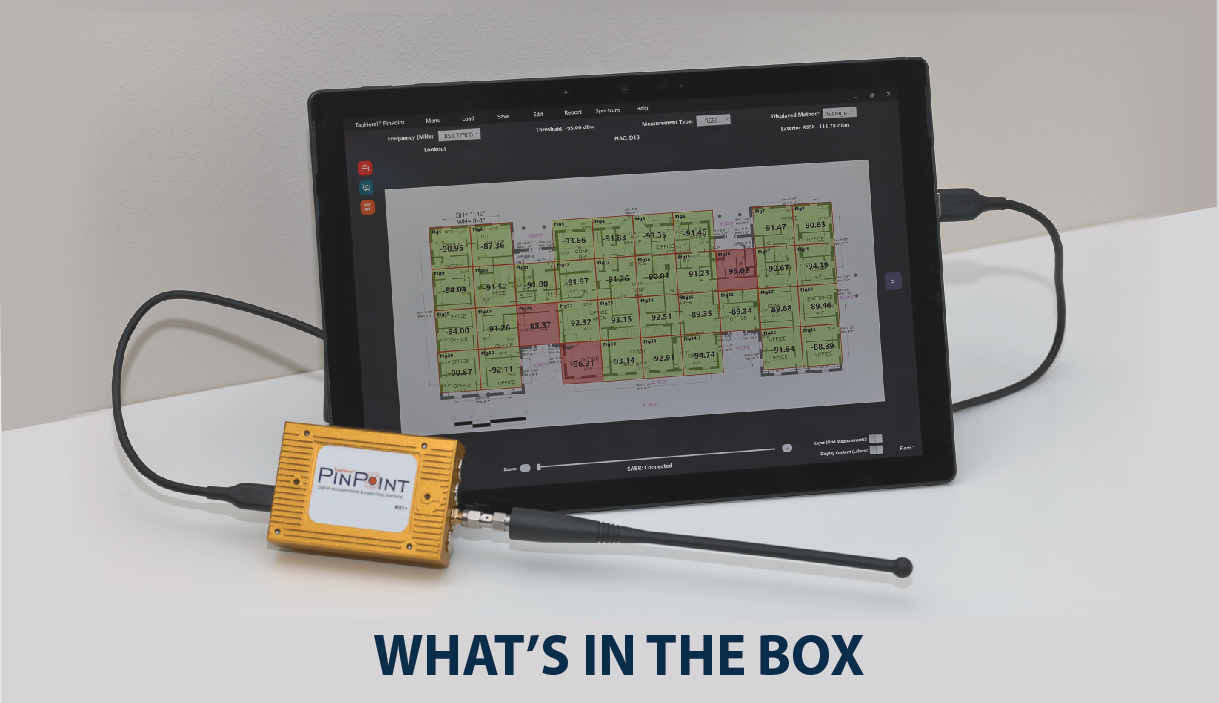

WHAT'S IN THE BOX
SABR Receiver (2”x3”, 2.9 oz)
Antenna, USB Cable
Licensed SW Download Key
OPTIONAL - Lightweight Touchscreen Windows Tablet
Tablet Minimum Requirements: Windows 10 or later; Intel i5 or later, AMD Ryzen 5 or later; (2) USB type C or USB 3 type A; 16GB RAM; 100GB storage
*v2.0 is coming Spring 2025
